refresh_tableau

refresh_tableau(workbook_or_datasource_title, site, server, token_name, token_secret)

Description

Refresh a tableau datasource or workbook named workbook_or_datasource_title.

Use case:

After model refresh, launch tableau datasource / workbook refresh from BigQuery in SQL

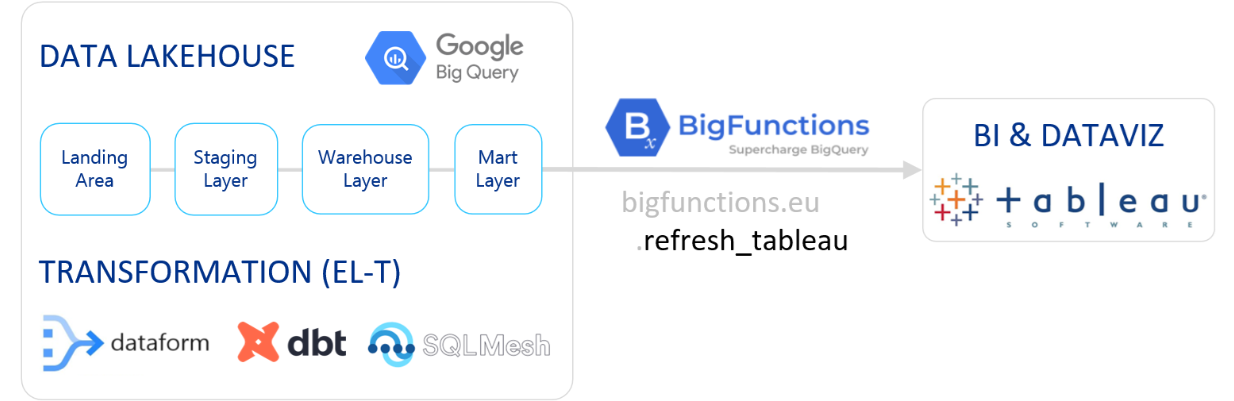

graph refresh tableau

Docs

  • Tableau's doc for creating a personnal access token on tableau server (cloud or onprem) for api usage

Encrypt your secrets

We advise NOT TO write your token in plain text in token_secret argument.

Otherwise, they will be stored in plain text in your BigQuery logs for months.

Instead, you can use the following snippet to generate an encrypted version of token_secret that you can copy safely as token_secret argument.

This public bigfunction (deployed on bigfunctions GCP project) will be able to decrypt it. But no one else can.

Usage

Call or Deploy refresh_tableau ?
Call refresh_tableau directly

The easiest way to use bigfunctions

  • refresh_tableau function is deployed in 39 public datasets for all of the 39 BigQuery regions.
  • It can be called by anyone. Just copy / paste examples below in your BigQuery console. It just works!
  • (You need to use the dataset in the same region as your datasets otherwise you may have a function not found error)

Public BigFunctions Datasets

Region Dataset
eu bigfunctions.eu
us bigfunctions.us
europe-west1 bigfunctions.europe_west1
asia-east1 bigfunctions.asia_east1
... ...
Deploy refresh_tableau in your project

Why deploy?

  • You may prefer to deploy refresh_tableau in your own project to build and manage your own catalog of functions.
  • This is particularly useful if you want to create private functions (for example calling your internal APIs).
  • Get started by reading the framework page

Deployment

refresh_tableau function can be deployed with:

pip install bigfunctions
bigfun get refresh_tableau
bigfun deploy refresh_tableau

Requirements

refresh_tableau uses the following secrets. Get them by reading the documentation link and store them in Google Secret Manager in the project where you deploy the function (and give Accessor role to the service account of the function):

name description documentation to get the secret
refresh_tableau_rsa_private_key RSA Private Key used to decrypt secrets doc

Examples

select bigfunctions.eu.refresh_tableau("My Great Workbook", "site_name", "eu-west-1a.online.tableau.com", "token_name", "ENCRYPTED_SECRET(GvVm...)")

select bigfunctions.us.refresh_tableau("My Great Workbook", "site_name", "eu-west-1a.online.tableau.com", "token_name", "ENCRYPTED_SECRET(GvVm...)")

select bigfunctions.europe_west1.refresh_tableau("My Great Workbook", "site_name", "eu-west-1a.online.tableau.com", "token_name", "ENCRYPTED_SECRET(GvVm...)")

+----------+
| response |
+----------+
| ok       |
+----------+

Use cases

A common use case for the refresh_tableau function is automating the refresh of Tableau dashboards after underlying data has been updated.

Scenario: Imagine a company that uses BigQuery to store sales data and Tableau to visualize this data in dashboards. They have a daily ETL process that updates the sales data in BigQuery. They want their Tableau dashboards to reflect this updated data automatically.

Implementation using refresh_tableau:

  1. Tableau Setup: A personal access token is created in Tableau Server with appropriate permissions to refresh the target datasource or workbook.

  2. BigQuery Implementation: The refresh_tableau function is called within a BigQuery script, scheduled to run after the daily ETL process completes. This script would look something like this (using the US region example):

-- Assume the ETL process has just finished updating sales data.

SELECT bigfunctions.us.refresh_tableau(
    'Sales Dashboard',  -- Replace with the actual workbook/datasource name
    'site_name',        -- Replace with the Tableau site name
    'eu-west-1a.online.tableau.com', -- Replace with your Tableau server address
    'token_name',       -- Replace with your token name
    'ENCRYPTED_SECRET(GvVm...)' -- Replace with your encrypted token secret
);
  1. Orchestration (Optional): A workflow orchestration tool like Cloud Composer or Cloud Functions could be used to manage the dependencies between the ETL process and the BigQuery script. The orchestration tool would ensure that the refresh_tableau function is called only after the ETL process has successfully completed.

Benefits:

  • Automation: Eliminates the need for manual refreshes, saving time and ensuring data consistency.
  • Data Freshness: Dashboards always reflect the latest data.
  • Integration: Seamlessly integrates with BigQuery ETL processes.
  • Centralized Management: Tableau refresh logic is managed within BigQuery, simplifying administration.

This automation ensures that business users always have access to the most up-to-date insights in their Tableau dashboards without any manual intervention. The encrypted secret provides a secure way to manage the Tableau access token within the BigQuery environment.
